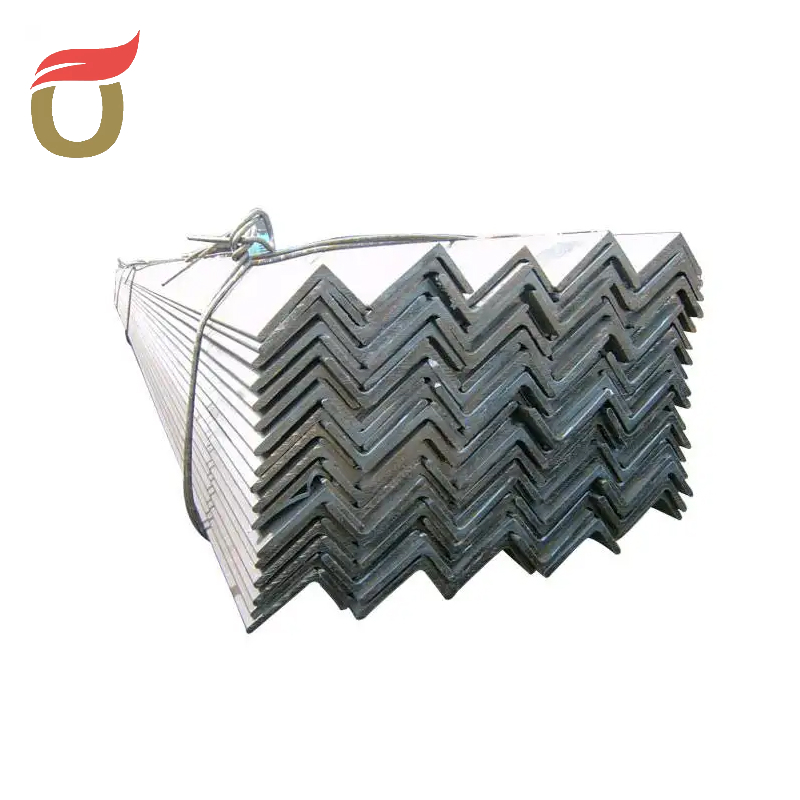

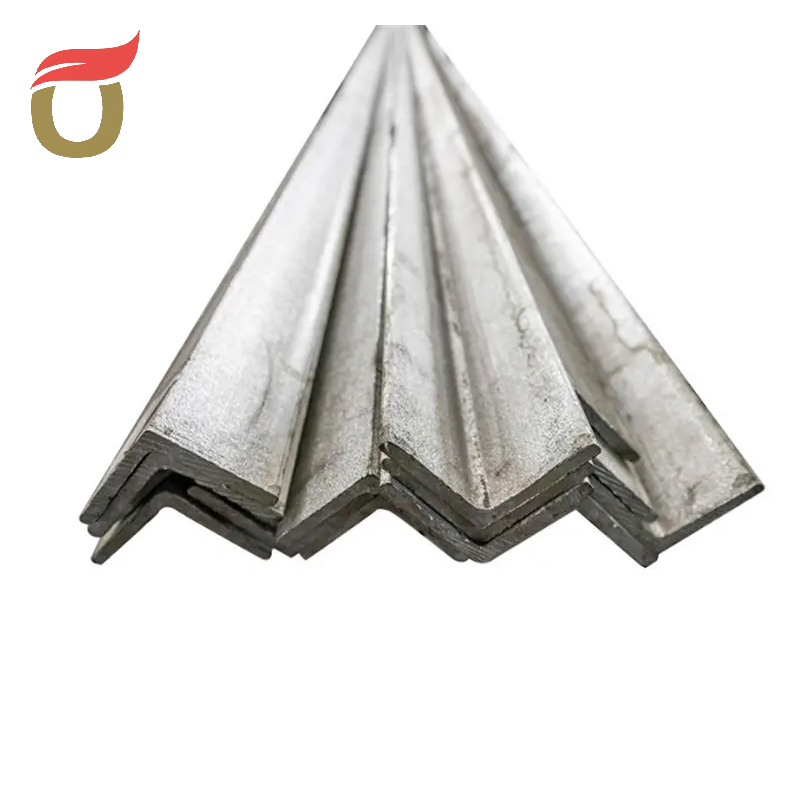

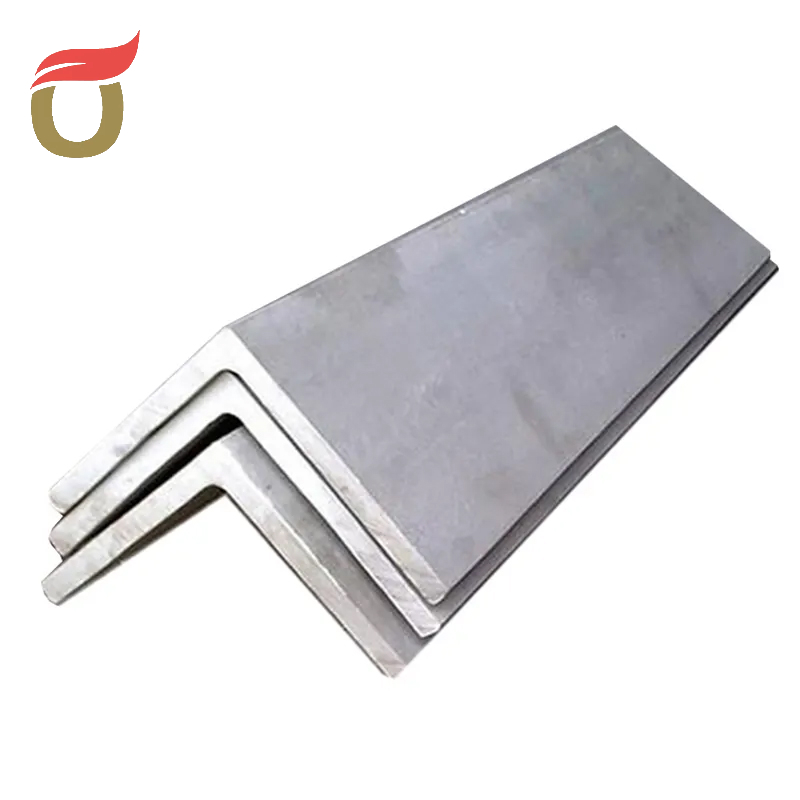

Carbon Steel Angle

It is mainly divided into two types: equilateral angle steel and unequal angle steel. Among them, unequal angle steel can be divided into two types: unequal sides and equal thickness and unequal sides and unequal thickness. The delivery length of angle steel is divided into two types: fixed length and double length. The selection range of fixed length for domestic angle steel has four ranges: 3~9m, 4~12m, 4~19m, and 6-19m according to the different specifications. The length of angle steel produced in Japan ranges from 6m to 15m.

Email：justin@baogangmetal.com

Phone：+86 13006574589

WhatsApp：+86 13006574589

Inquiry Now →

PRODUCT DESCRIPTION

Product name:	Angle steel
Place of Origin:	Shandong, China	Standard:	ASTM, AiSi, DIN, EN, GB, JIS
Application:	Industry/Chemical Equipment/Kitchen	Alloy Or Not:	Non-Alloy
thickness:	0.5mm-10mm	Technical Test:	UT Test, Bending Test, Charpy Test
Tolerance:	±1%	Processing Service:	Welding, Decoiling
Grade:	SS400-SS540 Series	Processing Service:	Welding, Decoiling
Delivery Time:	8-14Days	Technique:	Hot Rolled Angle Bar
Price Term:	CIF CFR FOB EX-WORK	Type:	Equal and Unequal
Finish:	Brush Polish	Size:	Customized Size
Payment Term:	30%T/T Advance + 70% Balance	Sample:	Free-sample
Keyword:	Galvanized equal steel angle bar	Brand Name:	Baogang

Size (MM)	theoretical weight (KG/M)	Size (MM)	theoretical weight (KG/M)	Size (MM)	theoretical weight (KG/M)	Size (MM)	theoretical weight (KG/M)	Size (MM)	theoretical weight (KG/M)
20*3	0.889	63*8	7.469	90*10	13.476	130*10	19.800	180*18	48.634
20*4	1.145	63*10	9.151	90*12	15.940	130*12	23.600	200*14	42.894
25*2	0.763	65*5	5.000	100*6	9.366	130*13	25.400	200*15	45.300
25*4	1.459	65*6	5.910	100*7	10.830	130*14	27.200	200*16	48.680
30*2	0.922	65*8	7.660	100*8	12.276	130*16	30.900	200*18	54.401
30*3	1.373	70*5	5.397	100*10	15.120	140*10	21.488	200*20	60.056
30*4	1.786	70*6	6.406	100*12	17.898	140*12	25.522	200*24	71.168
40*3	1.852	70*7	7.398	100*16	23.257	140*14	29.490	200*25	73.600
40*4	2.422	70*8	8.373	110*7	11.928	140*16	33.393	220*16	53.901
40*5	2.976	75*5	5.818	110*8	13.532	150*9	20.700	220*18	60.250
45*4	2.736	75*6	6.905	110*10	16.690	150*10	23.000	220*20	66.533
45*5	3.369	75*7	7.976	110*12	19.782	150*12	27.300	220*22	72.751
50*3	2.332	75*8	9.030	110*14	22.809	150*14	31.600	220*24	78.902
50*4	3.059	75*10	11.089	120*8	14.880	150*15	33.800	220*26	84.987
50*5	3.770	75*9	10.060	120*10	18.370	160*10	24.729	250*18	68.956
50*6	4.465	80*5	6.211	120*12	21.666	160*12	29.391	250*20	76.180
56*4	3.446	80*6	7.376	120*10	18.370	160*14	33.987	250*24	90.433
56*5	4.251	80*7	8.525	120*12	21.666	160*16	38.581	250*25	93.770
60*5	4.520	80*8	9.658	125*8	15.504	175*12	31.800	250*26	97.461
60*6	5.420	80*10	11.874	125*10	19.133	175*15	39.400	250*28	104.422
63*4	3.907	90*6	8.350	125*12	22.696	180*12	33.159	250*30	111.318
63*5	4.822	90*7	9.656	125*14	26.193	180*14	38.382	250*32	118.149
63*6	5.721	90*8	10.946	130*9	17.900	180*16	43.542	250*35	128.271
								250*35	128.27

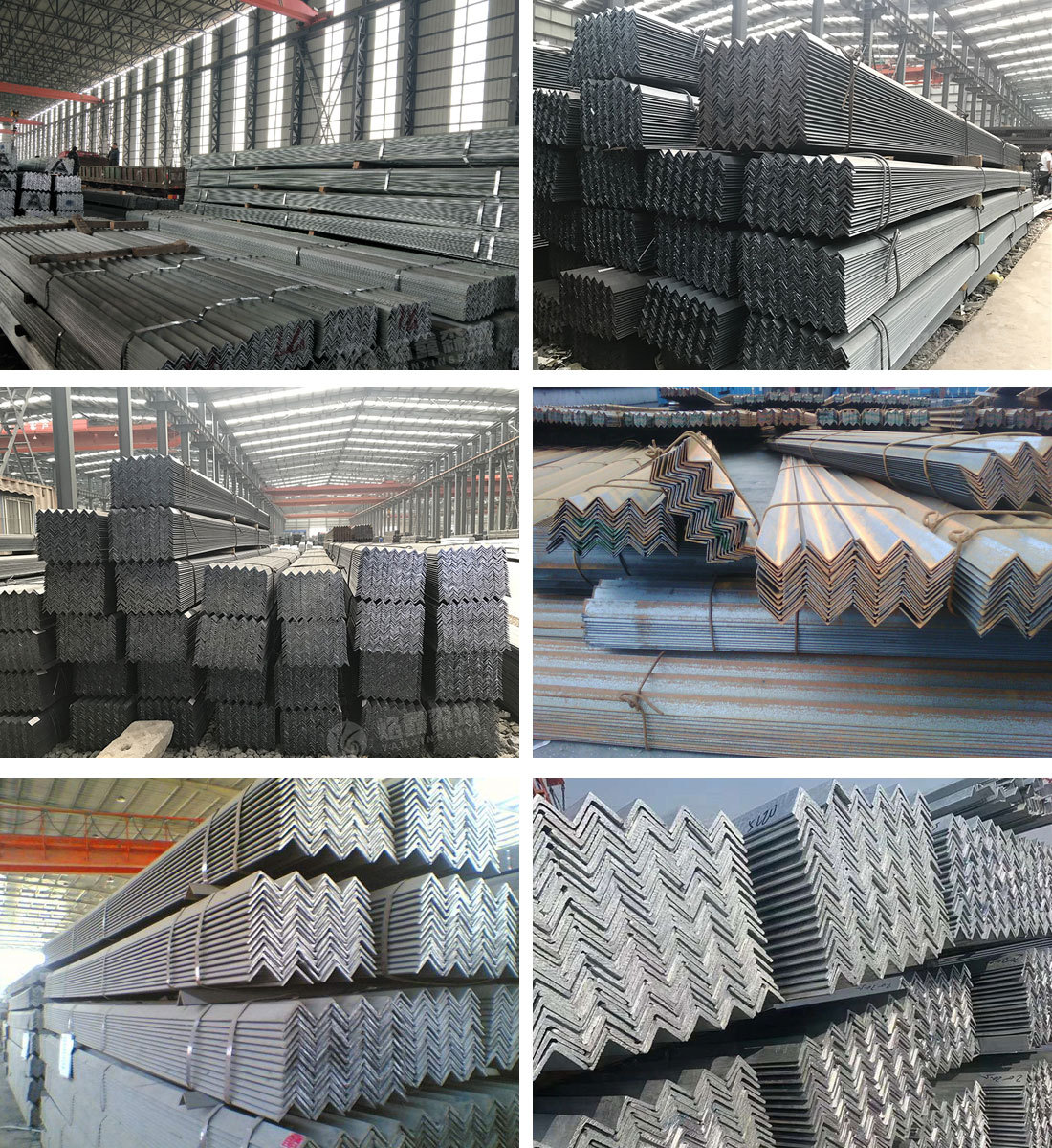

PRODUCT DISPLAY
