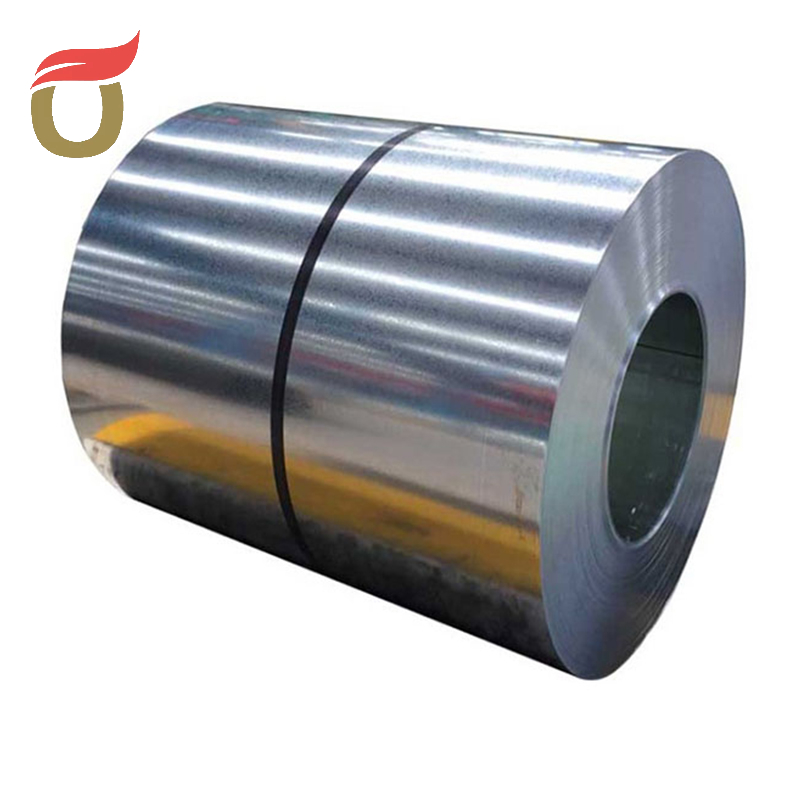

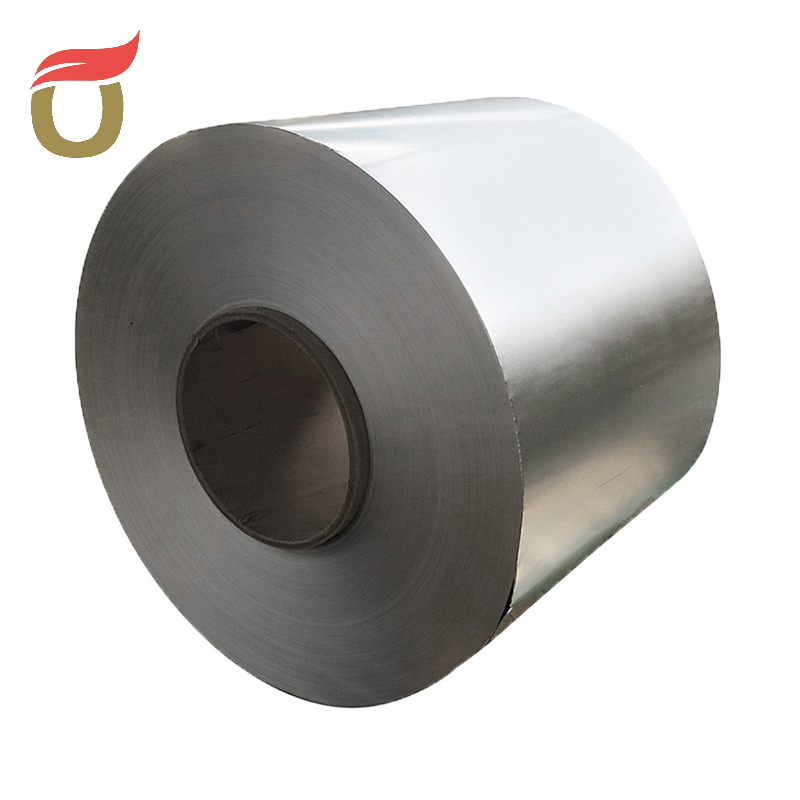

Galvanized Coil
Galvanized coil, a thin steel sheet that is dipped in a bath of molten zinc so that a layer of zinc is adhered to its surface. It is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously dipped in the galvanizing tank with molten zinc to make galvanized steel plate; alloyed galvanized steel plate.
Inquiry Now →

PRODUCT DESCRIPTION

Galvanized coil, a thin steel sheet that is dipped in a bath of molten zinc so that a layer of zinc is adhered to its surface. It is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously dipped in the galvanizing tank with molten zinc to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel panel is also made by hot dip method, but it is heated to about 500℃ immediately after coming out of the tank, so that it can form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability.



Technical StandardEN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel GradeDx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQCR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm, according to customer's requirement
Type of CoatingHot Dipped Galvanized Steel(HDGI)
Zinc Coating30-275g/m2
Surface TreatmentPassivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface StructureNormal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
QualityApproved by SGS,ISO
ID508mm/610mm
Coil Weight3-20 metric ton per coil
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export marketEurope, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc



Thickness/mmWeight(kg/㎡)Thickness/mmWeight(kg/㎡)
0.53.932.519.36
0.75.5323.55
17.853.527.48
1.310.213.930.62
1.612.564.535.33
215.75.543.18


PRODUCT DISPLAY

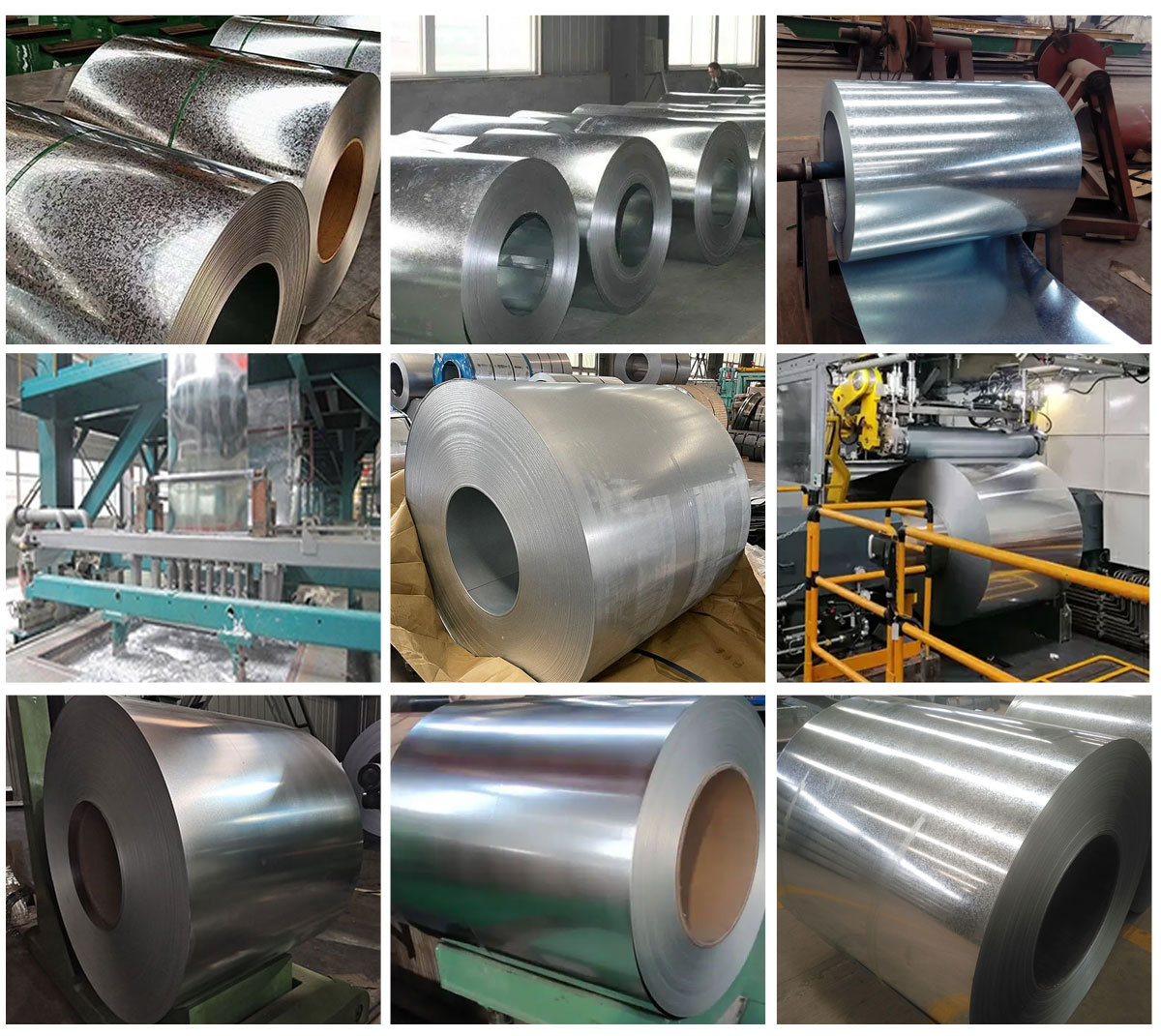

coil (3).jpg
